7 Congruent Encodings

In previous chapters, we have seen that some well-known plots, like bar plots, are effective because they encode data values to the basic visual features of a data symbol. For example, encoding the number of youth offenders as the length of a bar in a bar plot (Figure 5.1). We have also seen that basic visual features like length are effective because we can accurately decode quantitative data values from those visual features. We have also considered the capacity of visual features: how many different qualitative data values can we decode from a visual feature. For example, we can only identify a small number of different qualitative values if we encode the values using colour.

The purpose of this chapter is to show that, in order to understand the effectiveness of a data visualisation, we need to consider more than just the accuracy of encodings or the capacity of encodings when we encode data values as basic visual features.

7.1 Implicit decodings

Figure 7.1 shows two lines, one longer than the other. We can decode information from these lines without any explicit encoding of data values. For example, we can decode that one line is twice as long as the other without knowing anything about what “twice” represents in terms of data values. In other words, there is an implicit decoding from the lengths of the lines to data values (Figure 7.2).¹

Figure 7.1: We can decode the fact that one line is twice the length of another line without there having to be any explicit encoding of data values to the lengths of the two lines.

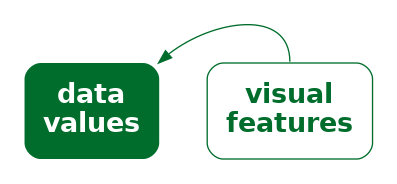

Figure 7.2: Some visual features have implicit encodings, which means that we can decode information from the visual features without having explicitly encoded any data values.

When an implicit decoding exists, we can produce a more effective encoding by building upon the implicit decoding. We can explicitly encode data values as visual features so that the decoding leads back to the same data values that we explicitly encoded (Figure 7.3)—we can explicitly encode data values so that the decoding is congruent with the implicit decoding.²

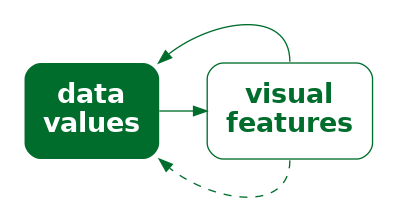

Figure 7.3: If we explicitly encode data values as visual features in a way that is consistent with an implicit decoding, we can more effectively decode data values from visual features.

7.2 Part-to-whole

Figure 7.4 shows a pie chart of the proportions of total youth offenders between 2011 and 2021 in different ethnic groups and a bar plot of the same data. We learned in Section 3.5 that encoding quantitative data values, like proportions, as lengths, like in the bar plot, is more accurate than encoding the proportions as angles or areas, like in the pie chart.

However, the superior representation of the fact that Māori offenders make up approximately 50% of the total is the pie chart rather than the bar plot. Although it is easy to determine from the length of the bar and the scale on the x-axis in the bar plot that the bar for Māori is just below 0.5, it is even easier, without any guides at all, to see that the light blue wedge in the pie chart is just under half a circle. It is also easy to see that the red wedge is close to a third of a circle.³

The reason why the pie chart in Figure 7.4 is more effective than a bar plot for conveying simple proportions like a quarter or a third or a half is because the wedges in a pie chart have an implicit decoding to (simple) fractions of a whole. A semi-circle has a strong visual association with half of a circle and thirds and quarters are similarly evocative.

One reason why a pie chart can be effective is because segments of a pie vividly convey simple fractions of a whole.

Figure 7.5 shows that if we place a bar representing a proportion bar within a reference rectangle that corresponds to a proportion of 1, then we can also create a part-to-whole congruence with bars, though the effect is not as strong as it is for pie wedges.

Figure 7.5: A bar plot of the proportion of offenders from different ethnic groups with reference rectangles to enhance the part-to-whole relationship.

7.3 More is more

We saw in Section 3.3 that visual features like length and area are appropriate for decoding quantitative values. For example, in Figure 7.6, the lengths of the bars are appropriate for decoding the total number of offenders in different ethnic groups.

Part of the reason why length and area work so well is because a longer bar implicitly conveys the idea of more.⁴ By contrast, the position of data points in a dot plot of the same data, as shown in Figure 7.6, do not inherently convey the same sense of more. In a bar plot, the data symbols that correspond to larger data values are actually larger data symbols; the presentation of larger data values is more abstract in a dot plot.

Another way that length can convey information more naturally than position is visualising negative values. For example Figure 7.7 shows the total points differential (points scored minus points conceded) for Tier One nations at Rugby World Cups (see Table 4.2). The direction of the bars very clearly indicates the change from positive points differential to negative points differential.

Figure 7.7: A bar plot of the total points differential for Tier One nations at Rugby World Cups.

By comparison, the change from positive to negative points differential is much more abstract in a dot plot of the same data (Figure 7.8).

Figure 7.8: A dot plot of the total points differential for Tier One nations at Rugby World Cups.

One reason why bar plots are effective is because larger data values are represented by larger data symbols.

A more subtle effect can be seen in Figure 7.9, which shows two different bar plots of the total number of offenders in different ethnic groups. In this case, the vertical bars are more natural for conveying count data like this because of the natural correspondence with stacks of items.⁵

7.4 Same is same

In Section 2.5 we saw that the visual system is very sensitive to differences, particularly when everything else remains the same. This means that encoding changes in data values to changes in data symbols will be effective because the visual system will notice the differences in the data symbols. More specifically, if a visual feature of a data symbol changes then the visual system will notice that change. Furthermore, if a visual feature of a data symbol changes while all other visual features of the data symbol remain the same, the visual system will notice the change more easily (Section 2.5). Put another way, visual differences are implicitly decoded as changes in the data values and visual constancy is implicitly decoded as no change in the data values.

For example, in a bar plot like Figure 3.1, the data symbols are bars and only the lengths of the bars and the vertical positions of the bars are different. The “widths” of the bars and the colours of the bars remain the same.

Another reason why bar plots are effective is because the bars differ in length, but are otherwise the same.

7.5 Dissonant encodings

The fact that length and area implicitly convey amounts means that care must be taken not to confuse that association.⁶ For example, Figure 7.10 shows the number of times each team entered the opposition’s final third during a match at the 2023 Women’s World Cup.⁷ The final third of the pitch is shown as darker green regions, broken into five different zones, with a number of entries for each zone and each team represented by a line with an arrow.

In Figure 7.10, longer lines correspond to a larger number of entries. However, the bars start at the halfway line on the pitch rather than at the final third of the pitch. This means that the zero entries by South Africa into the second-from-right zone is encoded as a non-zero-length line. Apart from making comparisons of the line lengths very inaccurate, this creates a confusing visual effect because the viewer is expected to decode a non-zero length to a value of zero.

Figure 7.10: The number of times each team entered the opposition’s final third in the Women’s World Cup match between the Netherlands and South Africa.

For any example of congruence, where a visual feature implicitly decodes to a property of the data, there is an opportunity for dissonance if the visual feature is used inappropriately. We can improve the effectiveness of a data visualisation by taking advantage of visual congruence and we can reduce the effectiveness of a data visualisation if we create visual dissonance.⁸

If we fail to make our explicit encodings congruent with any implicit encodings—if we create a dissonant encoding—we can make it harder and more confusing to decode a data visualisation because there is more than one possible decoding (Figure 7.11).

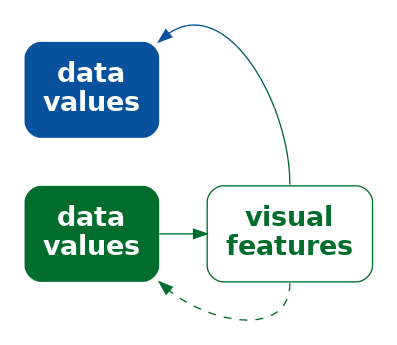

Figure 7.11: If we explicitly encode data values to visual features, but the visual features have an implicit encoding to different data values, we can cause confusion and make it harder to effectively decode data values from visual features.

We saw in Section 7.4 that we want to encode differences in data values to differences in visual features and keep everything else the same. Failing to follow that approach will make it harder to perceive changes in the data values. However, a worse error, and another source of visual dissonance arises if we change visual features without any underlying change in the data values.⁹

Figure 7.12 shows a data visualisation of the relative number of people aged over 100 for females versus males.¹⁰ There are numerous problems with this data visualisation, but here we will just focus on the horizontal position of the cake images. The cakes for females are positioned to the left of the cakes for males, which is acceptable because that difference in position reflects a difference in the data—males versus females. However, within each gender, the cakes are also staggered a small amount to the left then to the right. This visual difference in the cake positions does not correspond to any difference in the data values. We are tempted to seek meaning from the the left-to-right staggering of the cakes when no meaning exists.

Figure 7.12: A data visualisation of the number of females aged over 100 relative to the number of makes aged over 100.

A data visualisation is not effective if it contains encodings that are dissonant because that can cause distraction and slower and/or incorrect decoding of data values from visual features.

7.6 Case study: Time’s arrow

Figure 7.13 shows the results of a 2025 poll that asked what was the best thing that the Trump administration had done, comparing results in February to results in September. In terms of encodings, this bar plot makes good use of (vertical) position and (horizontal) length to encode different policy issues, the difference in dates, and the percent of respondents who voted for each policy. However, when we look at the top two bars, there is a temptation to read the pairs of bars in order from top to bottom.¹¹ If we do not attend carefully to the legend, we may perceive a decrease in the (relative) popularity of the immigration policy and an increase in the popularity of DOGE. This is a subtle example of visual dissonance.

Figure 7.13: Bar plot of most popular Trump policies over time.

Figure 7.14 shows another version of the bar plot, with the bars running vertically. In this plot, the natural reading from left to right leads to the correct interpretation: the (relative) popularity of DOGE has declined while the popularity of the immigration policy has increased. This is an example of visual congruence.

Figure 7.14: Bar plot of most popular Trump policies over time.

7.7 Case study: Jittering

Figure 7.15 shows a dot plot of the number of points scored by Tier One nations from different hemispheres at Rugby World Cup matches (Table 4.2). In this data visualisation, the data symbols are dots, the number of points scored is encoded as the horizontal position of the dots, and the hemisphere is encoded as the vertical position of the dots. We saw a similar visualisation of these data in Figure 4.6, which demonstrated the problem of overplotting of points that share the same data value.

In Figure 7.15, to ameliorate the overlapping of data points, a random amount of “jitter” has been added the vertical position of the dots. The filled interior of each dot is also semitransparent so that we can see where some points still overlap.

Figure 7.15: The number of points scored in Rugby World Cup games by teams from the northern and southern hemispheres.

The dot plot in Figure 7.15 is effective for decoding to the number of points scored because each data value is encoded as the horizontal position of a single data symbol. Similarly, we can easily decode the hemisphere from each point. The proximity of the data symbols from the same hemisphere means that it is easy to perceive two “rows” of points (Section 2.7).

On the other hand, the jittering means that there are visual differences between the vertical positions of the dots, within the same hemisphere, that do not correspond to any differences in data values. For example, there are two dots representing matches where a team from the Northern hemisphere scored zero points. The data values for these two dots are identical (zero points scored and northern hemisphere), but they are visually different. The randomness of the jittering may help to dilute any temptation to seek meaning from the artificial visual difference, but the addition of jittering is a potential source of confusion.

Jittering data symbols is effective because it reduces the amount of overlap amongst data symbols, but jittering may also reduce the effectiveness of a data visualisation because it introduces visual dissonance.

7.8 Summary

Précis (click to expand/contract)

Data visualisations can be very effective for communicating information.

However, a data visualisation that is effective for communicating one type of information may be ineffective for communicating another type of information.

The goal of this book is to explain why some data visualisations are more effective than others at communicating different types of information—how data visualisation works.

We will focus on how information can be encoded to create a visual representation. We will characterise a data visualisation in terms of the encodings that it uses to convert data values into data symbols.

The effectiveness of an encoding will depend on how well we can decode the information that we want from a visual representation. We will judge a data visualisation in terms of how well data values can be recovered from the data symbols.

There are features of the human visual system that mean that we can decode some information extremely rapidly and without effort:

A very large amount of basic information is gathered at once about simple visual features like positions, lengths, and colours.
Large, bright, colourful items automatically attract attention.
We automatically identify groups of items within an image based on similarity of basic visual features like position and colour, plus connecting lines and enclosing borders.

On the other hand, there are limitations of the visual system that suggest encodings that we should avoid:

Detailed information is only available at the centre of the visual field.
Visual memory is extremely limited.

These features suggest that encoding data values as basic visual features and generating simple, orderly data visualisations will lead to rapid and effortless decoding of information.

A simple encoding of data values to data symbols involves encoding each data value to a separate data symbol. This allows the viewer to decode and compare individual data values from the data symbols.

A simple encoding of data values to data symbols also involves encoding each data value as a basic visual feature of the data symbol, e.g., position, length, area, angle, colour, or pattern.

Position, length, area, and angle are appropriate for encoding quantitative data because we can decode numeric values from these visual features. We can decode position and length more accurately than area and angle.

Position, colour, and pattern are appropriate for encoding qualitative data because we can decode groups from these visual features. We can represent a large number of categories if we use position, but only a few categories if we use colours and patterns.

Encoding data values as the position of data symbols is very effective for decoding of both quantitative and qualitative information. However …

For quantitative values, what we can accurately decode are comparisons between quantitative values, not absolute quantitative values.
The decoding is most accurate for positions that share a common baseline.
Encoding identical data values as the positions of data symbols means that the data symbols overlap, which compromises our ability to decode data values from the data symbols.
We can encode one set of data values as horizontal positions and another set of data values as vertical positions because we can decode horizontal and vertical positions separately.
Decoding quantitative data values from the positions of data symbols is only accurate if the encoding is linear.

Encoding data values as the length of data symbols is very effective for decoding quantitative information. However …

Comparisons between lengths are more difficult if the lengths are far apart, especially if there are distractors in between.
Comparisons between lengths are more difficult if the lengths do not have a common baseline.
Comparisons between lengths are easier for shorter lengths.

Colour is really three visual features: hue, chroma, and luminance.

Hue is excellent for encoding nominal data values, though it has a limited capacity.

Chroma and luminance can be used to encode ordinal data values (as well as nominal data values), but they have even lower capacity.

When we encode data values as colours there are several caveats:

The decoding of data values from colours is affected by surrounding colours and the size of the data symbol.
Approximately 10% of viewers are unable to differentiate between red and green hues with similar chroma and luminance.

Selecting which colours should be used to encode data values is difficult to get right and a good solution often involves varying all of hue, chroma, and luminance at once.

Consequently, it is usually a good idea to make use of pre-existing colour palettes that have been carefully designed to avoid most problems.

The effectiveness of a data visualisation may depend on more than just the accuracy and capacity of visual features.

Some visual features have an implicit decoding—we can decode information from the visual feature without any explicit encoding of information—for example, we can implicitly decode a ratio of 2 from two lines where one is twice the length of another.

A congruent encoding is one where data values are explicitly encoded in a way that is consistent with an implicit decoding of the visual feature.

A data visualisation will be more effective if it is visually congruent, for example, data symbols are larger for larger data values or data symbols only change if the data values change.

A dissonant encoding is one where data values are explicitly encoded in a way that is inconsistent with an implicit decoding.

A data visualisations will be less effective if it is visually dissonant.

Bergstrom, Carl, and Jevin West. 2017. “The Principle of Proportional Ink.” https://callingbullshit.org/tools/tools_proportional_ink.html. 2017.

Bertini, Enrico. 2024. “Semantic Clashes in Data Visualization.” https://filwd.substack.com/p/semantic-clashes-in-data-visualization. 2024.

Bertini, Enrico, Michael Correll, and Steven Franconeri. 2020. “Why Shouldn’t All Charts Be Scatter Plots? Beyond Precision-Driven Visualizations.” CoRR abs/2008.11310. https://arxiv.org/abs/2008.11310.

Eells, Walter Crosby. 1926. “The Relative Merits of Circles and Bars for Representing Component Parts.” Journal of the American Statistical Association 21 (154): 119–32. http://www.jstor.org/stable/2277140.

Few, Stephen. 2012. Show Me the Numbers: Designing Tables and Graphs to Enlighten. 2nd ed. Burlingame, CA: Analytics Press.

Fischer, Martin H., Nele Dewulf, and Robin L. Hill. 2005. “Designing Bar Graphs: Orientation Matters.” Applied Cognitive Psychology 19 (7): 953–62. https://doi.org/https://doi.org/10.1002/acp.1105.

Fygenson, Racquel, Lace Padilla, and Enrico Bertini. 2025.“Cognitive Affordances in Visualization: Related Constructs, Design Factors, and Framework .” IEEE Transactions on Visualization & Computer Graphics 31 (12): 10624–39. https://doi.org/10.1109/TVCG.2025.3610803.

Kerns, Sarah H., and Jeremy B. Wilmer. 2021. “Two Graphs Walk into a Bar: Readout-Based Measurement Reveals the Bar-Tip Limit Error, a Common, Categorical Misinterpretation of Mean Bar Graphs.” Journal of Vision 21 (12): 17. https://doi.org/10.1167/jov.21.12.17.

Kosslyn, Stephen M. 1994. Elements of Graph Design. New York: W. H. Freeman; Company.

———. 2006. Graph Design for the Eye and Mind. Oxford University Press. https://doi.org/10.1093/acprof:oso/9780195311846.001.0001.

Simkin, David, and Reid Hastie. 1987. “An Information-Processing Analysis of Graph Perception.” Journal of the American Statistical Association 82 (398): 454–65. https://doi.org/10.1080/01621459.1987.10478448.

Tversky, Barbara, Julie Bauer Morrison, and Mireille Betrancourt. 2002. “Animation: Can It Facilitate?” International Journal of Human-Computer Studies 57 (4): 247–62. https://doi.org/https://doi.org/10.1006/ijhc.2002.1017.

Vessey, Iris. 1991. “Cognitive Fit: A Theory-Based Analysis of the Graphs Versus Tables Literature.” Decision Sciences 22 (2): 219–40. https://doi.org/https://doi.org/10.1111/j.1540-5915.1991.tb00344.x.

Wilke, Claus O. 2019. Fundamentals of Data Visualization: A Primer on Making Informative and Compelling Figures. Sebastopol, CA: O’Reilly Media.

These implicit encodings are part of the reason why different visual features are appropriate for encoding quantitative verus qualitative data values. The length of a data symbol is appropriate for encoding quantitative data values because we implicitly decode amounts from length.↩︎
Tversky, Morrison, and Betrancourt (2002) describe a congruence principle: “the structure and content of the external representation should correspond to the desired structure and content of the internal representation,” where the “external representation” is a data visualisation and the “internal representation” corresponds to an implicit decoding.

Bertini, Correll, and Franconeri (2020) discuss measures of effectiveness beyond accuracy and capacity and refer to the congruence principle above as well as the idea of congnitive fit: “performance on a task will be enhanced when there is a cognitive fit (match) between the information emphasized in the representation type and that required by the task type” (Vessey 1991). The latter was focused on a comparison of plots versus tables (plots for spatial comparisons and tables for more complex cognitive tasks involving symbolic reasoning), but it is analogous to the idea of congruent encodings.

The idea of cognitive affordance, “the relationship between the design of an object and the knowledge that is imparted upon the object’s user”, is also related to the idea of congruence (Fygenson, Padilla, and Bertini 2025).↩︎
This defence of pie charts has existed for a very long time (Eells 1926) and continues to receive empirical support in more recent times (Simkin and Hastie 1987).

“The one thing that a pie chart has going for it … is the fact that people immediately recognize a pie chart as a part-to-whole display.” (Few 2012, 114)↩︎
Kosslyn’s Principle of Compatibility states that “A message is easiest to understand if its form is compatible with its meaning”, plus explicitly “More Is More” (Kosslyn 2006).

Wilke (2019) has a similar Principle of Proportional Ink, which he attributes to Bergstrom and West (2017). A corollary is that bars in a bar plot should start at zero.↩︎
Examples of mentions that vertical bars are preferred because they are more familiar or correspond naturally to increases include Kosslyn (1994), Fischer, Dewulf, and Hill (2005), and Kerns and Wilmer (2021).↩︎
This is related to visual illusions (Section 2.10). There are decodings that the visual system performs whether we want it to or not, so we want to avoid conflicting with what the visual system does automatically.↩︎
This data visualisation is an adaptation of a graphic shown during the live television coverage of the match.↩︎
The idea of visual dissonance is just a logical inversion of the idea of visual congruence. This idea is not named in any literature that I could find, though semantic clashes (Bertini 2024) perhaps comes closest.↩︎
Kosslyn’s Principle of Informative Changes states that “People expect changes in properties to carry information” (Kosslyn 2006).↩︎
This plot is based on a data visualisation from the New Zealand Listener October 14-20 2023.↩︎
The idea for this data visualisation, and whether to question the vertical ordering, comes from a PolicyViz Newsletter. The original data source was a Washington Post poll).↩︎
